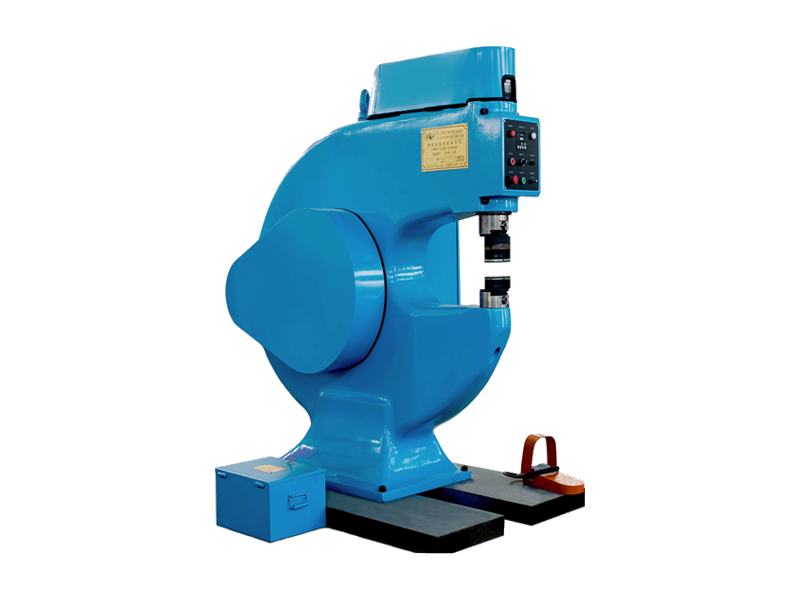

The NPF665 Power Forming Machine
The forming machine is designed for precise cold forming, stretching, shrinking, and curved surface shaping of sheet metal and profiles.
To tackle the challenges in sheet metal manufacturing for the aerospace industry, the Nexug team took the initiative to develop and produce forming machine.
The forming machine is widely used in aerospace, automotive parts production, shipbuilding, and other industries that require precise sheet metal forming.
Within Nexug's forming technology, we specialize in sheet metal forming, profile bending, component manufacturing, repair, and precision trimming. Our processing is precise, chipless, and cold-formed. We offer a range of power cold press forming equipment, available in various models based on forming force, extension length, stroke count, and pressure control.
As a factory focused on forming, shrinking, and stretching machines, we cater to industries such as automotive, aerospace, shipbuilding, high-speed rail, and general sheet metal processing. We design and manufacture machinery and equipment for forming, stamping, and processing sheet metal and profiles.
With a commitment to high-quality products and services, we leverage innovative cold forming technology to shrink or stretch materials. With decades of experience, we are recognized problem solvers in the sheet metal industry. Whether for classic cars or missiles, Nexug's products ensure precise processing, with our business now serving global markets.
High-performance industrial solutions built to rigorous technical parameters and specifications
Heavy-duty cold forming solution with deep throat and high-torque servo drive for large or complex sheet metal parts.
| Horizontal Throat | 665 mm |
| Vertical Throat | 295 mm |
| Working Stroke | 8 mm |
| Strokes per Minute | 0-600 |
| Nominal Capacity | 4.2 kW |
| Ram Adjustment | 80 mm |
| Net Weight | 2500 kg |
| Steel (Rm = 400N/mm²) | max. 6.0 mm |
| Aluminium (Rm = 250N/mm²) | max. 8.0 mm |
| Stainless Steel (Rm = 600N/mm²) | max. 4.0 mm |

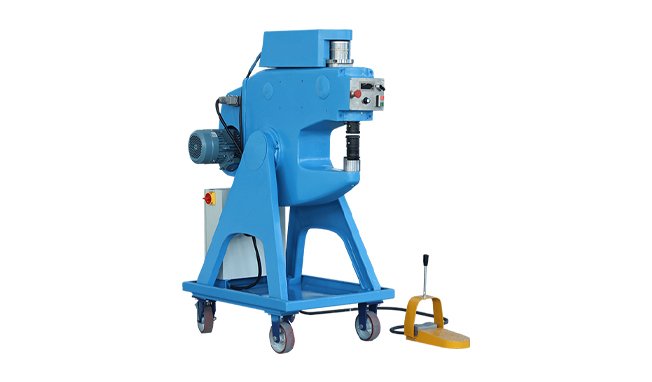

Compact, multi-process cold forming machine for precision sheet metal forming and component production.
| Horizontal Throat | 350 mm |
| Vertical Throat | 188 mm |
| Working Stroke | 8 mm |
| Strokes per Minute | 0-400 |
| Nominal Capacity | 1.5 kW |
| Ram Adjustment | 80 mm |
| Net Weight | 550 kg |
| Steel (Rm = 400N/mm²) | max. 2.0 mm |
| Aluminium (Rm = 250N/mm²) | max. 2.5 mm |
| Stainless Steel (Rm = 600N/mm²) | max. 1.5 mm |
Powerful, air-driven sheet metal forming solution for specialized curves and component precision profiles.
| Horizontal Throat | 400 mm |
| Vertical Throat | 500 mm |
| Working Stroke | 50 mm |
| Strokes per Minute | 60-80 |
| Nominal Capacity | Pneumatic |
| Ram Adjustment | - |
| Net Weight | 350 kg |
| Steel (Rm = 400N/mm²) | max. 5.0 mm |
| Aluminium (Rm = 250N/mm²) | max. 6.0 mm |
| Stainless Steel (Rm = 600N/mm²) | max. 3.0 mm |
The strength of a business is defined with what it can provide for its customers.
We don't represent every line of fabrication equipment out there; we only represent the products we believe in.
Our team is fast and responsive. Whether you're looking for technical specifications or demos.
Our service team is well trained and certified on a wide range of machinery & tools.
Versatile engineering capability deployment across heavy manufacturing, fine craft molding, and specialized industrial workflows
